Bronpi Lisbon-3C
search

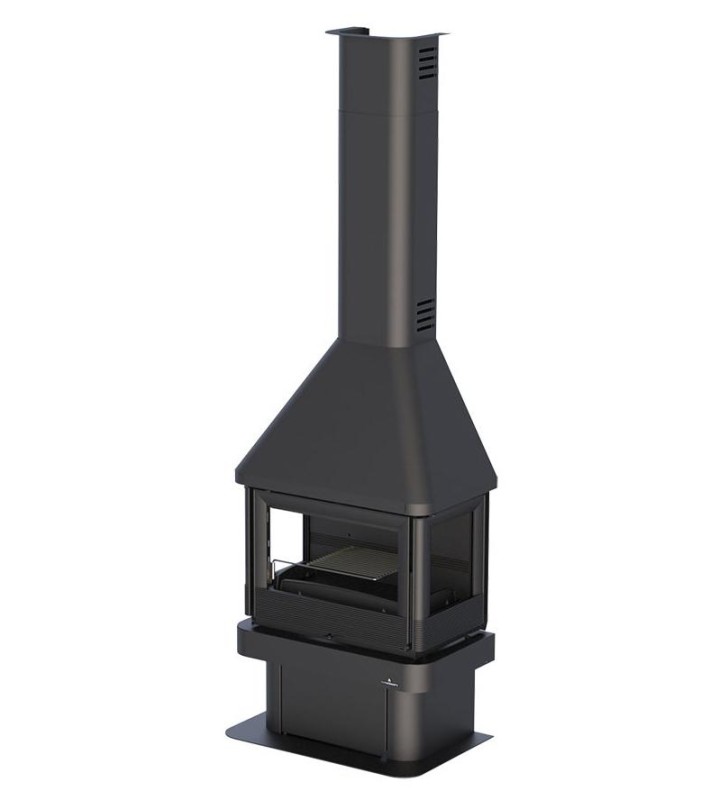

  • Bronpi Lisbon-3C
  • Bronpi Lisbon-3c
  • Includes a removable 300x300 mm grill that can be adjusted to various heights.
  • Lever with Bronpi patented locking system. Always the perfect fit.
  • Lower wood cabinet

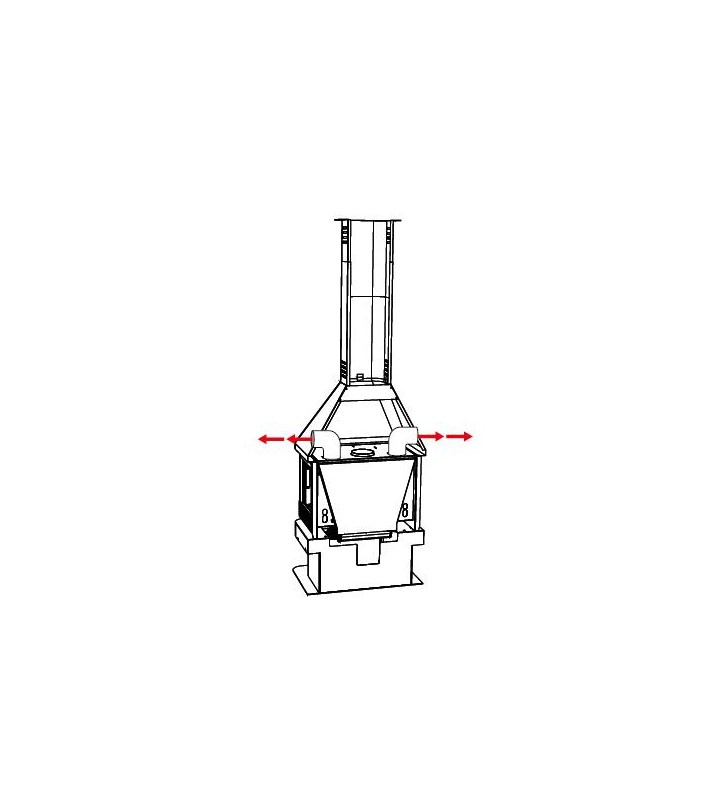

  • With the possibility of converting into a channel
  • Possibility of disconnecting the turbine.

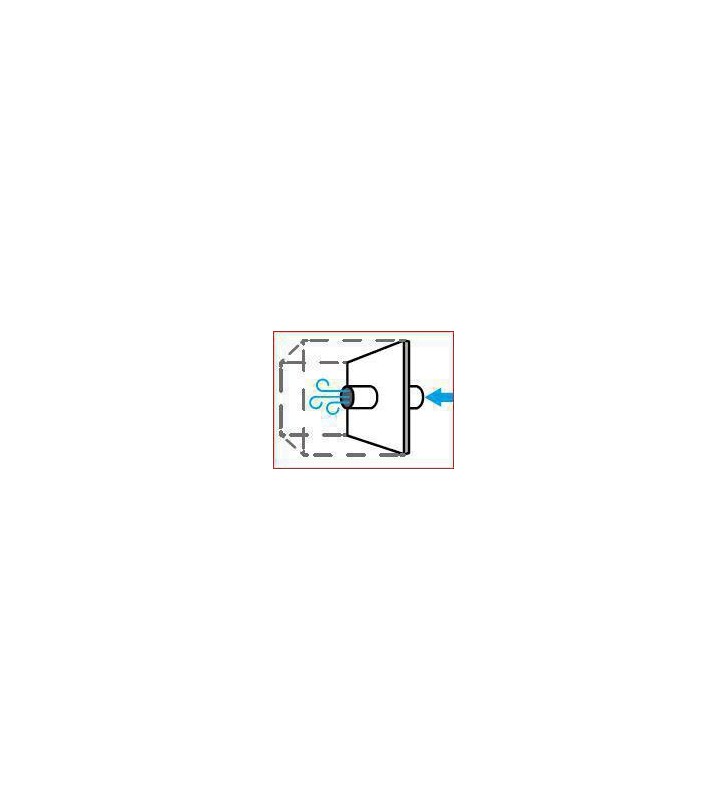

  • Kit with external air intake. To convert into a sealed unit.

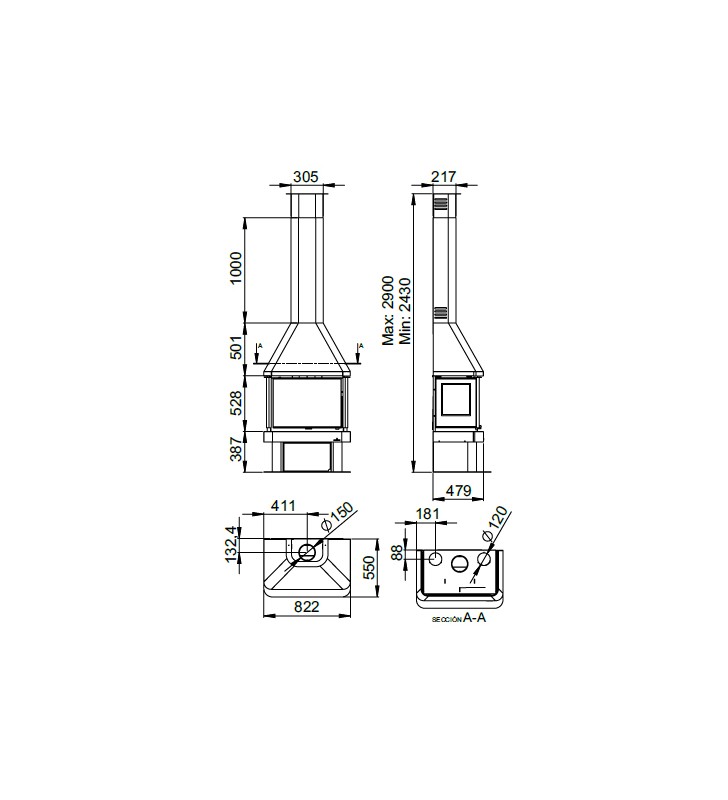

  • Bronpi Lisboa-3C measurement plan

Bronpi Lisbon-3C


€1,565.00

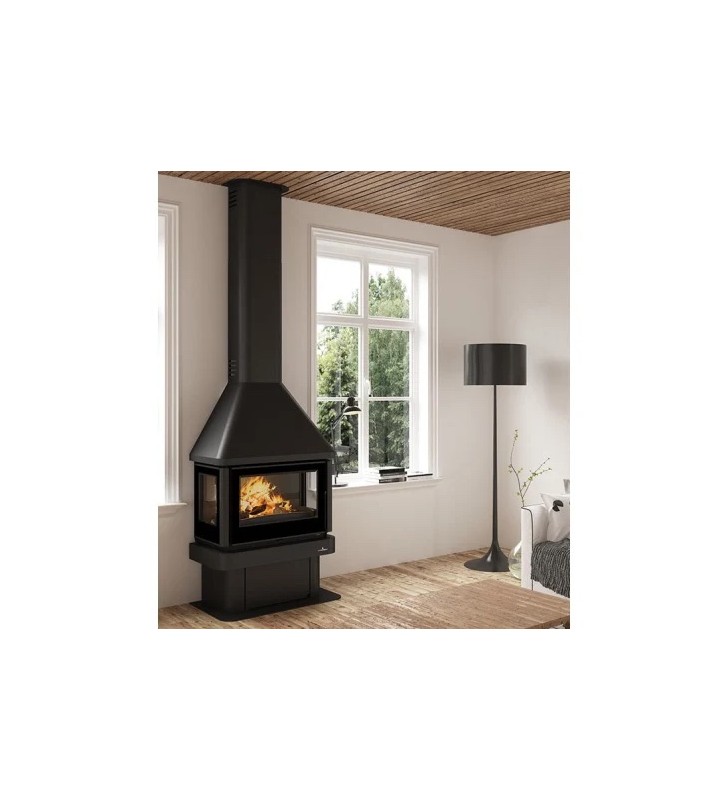

Metal fireplace seen with 3-pane vision, interior of the home in cast iron and forced ventilation through a disconnectable tangential turbine.

Outdoor Air Intake
qty

Rating:
(0)


Security Policy



Delivery Policy



Return Policy

Since its appearance, the Bronpi Lisboa 3C has become Bronpi's most successful metal fireplace. In addition to the glass on the front loading door, it also has glass on the sides, thus achieving a spectacular view of the fire on 3 sides.

Both the door and the interior are made of cast iron. The containing structure of the fireplace, its lower woodshed with door, upper hood, pipe cover and trim panel for the ceiling are made of steel.

One of the differentiating aspects of the entire Lisboa range (twinned and sharing internal design with the Paris insert series and the Versalles range of stoves) is the presence of a tangential turbine to provide forced ventilation to the chimney. The location of the turbine, at the rear of the chimney and below its combustion chamber, allows it to be disconnected. As the bell that remains between the chimney glass and the pipe cover is hollow, it would allow heated air ducts to be removed from the roof of the combustion chamber towards the back of the chimney by simply opening two holes that are closed but pre-cut to its opening for this purpose.

PROD00030
100 Items

Data sheet

Broad
822mm.
Height
2900mm.
Depth
550mm.
Pipe diameter
150mm.
Declared power
12 kW.
Performance
75%
Material interior:
Foundry
Silent (turbine deactivatable)
Yeah
Made in
Casting and Steel
Clean glass system
Yeah
Delivery term
72 hours
Trunk length
55cm.
Double Combustion
Yeah
Forced air
1x Turbine 290m³/h
Weight
201 Kg.

Specific References

FAQ - Frequently asked questions about Bronpi Lisboa-3C

Features of Bronpi Lisboa-3C

How much will my Bronpi Lisboa-3C heat?

The Bronpi Lisboa-3C metal fireplace model has double combustion and a clean glass system

Its optimum power (nominal with 75% efficiency) is 12 kW.

What does it mean that my Bronpi Lisboa-3C has double combustion?

The double combustion of the Bronpi Lisboa-3C model is an additional contribution of preheated air in the upper part of the combustion chamber that allows the burning of all the particles that have not been burned in the area where the fuel is and that - in a device that did not have this system - would be ash, soot in the tube or particle emissions into the atmosphere.

This over-oxygenation produces a burning of all these particles of material that would normally be waste.

Visually, we see an additional fire of great beauty, which will translate into greater heating power at lower consumption, that is, greater performance. The performance data measures the burning efficiency.

A double combustion stove is more ecological and environmentally friendly due to its lower emission level and lower fuel consumption.

Advice for the installation of my Bronpi Lisboa-3C

You can call us by phone and we will explain to you or your trusted bricklayer all the details and requirements for a correct installation.

We can also advise you on the smoke extraction pipe, as well as provide you with a quote and supply it at a special discount.

As our customer, you benefit from a 10% discount on the prices you will see on our pipe website expochimeneas.com/tienda.

During installation and use, you can count on the support and advice of our specialists through telephone contact, email or WhatsApp.

Bronpi warranty and extended coverage Expochimeneas

What coverage does the warranty offered by the manufacturer Bronpi have?

Bronpi guarantees that the cast iron or steel exterior parts of the product are free from material or manufacturing defects. This guarantee covers a period of 2 years from the date of purchase.

Bronpi's warranty does not cover the repair or replacement of parts subject to normal wear and tear, such as combustion plates, grates, smoke deflectors, interior parts with fire and moving parts such as handles or knobs. The warranty also does not cover broken glass or wear and tear on door and glass cords.

You can see the full text of the Bronpi guarantee from the following link.

What is the Expochimeneas extended warranty?

Although the legal guarantee of the product is provided by the manufacturer, buying at Expochimeneas benefits from a series of advantages and added services. Management of incidents with manufacturers, advantageous conditions for the acquisition of spare parts out of warranty. Ask a sales advisor for information.

Offers, special discounts and financing

How to pay for Bronpi Lisboa-3C at Expochimeneas?

You can pay by transfer or credit card through our secure payment gateway

Payment by Paypal or cash on delivery is not accepted.

Can I get a discount?

You can request a Bronpi Lisboa-3C discount or gift coupon from the following form

Can I finance the purchase of my Bronpi Lisboa-3C?

All offers are valid for cash payment (transfer or credit card)

You can finance Bronpi Lisboa-3C for up to 12 months without interest. Free financing is incompatible with any other offer or discount

Shipping and delivery times

What is the delivery time for Bronpi Lisboa-3C?

We have stock in our warehouse and immediate availability for Bronpi Lisboa-3C. The delivery time will be between 3 and 6 business days depending on the destination.

Are there any shipping costs if I buy Bronpi Lisboa-3C at Expochimeneas?

Bronpi Lisboa-3C is shipped free of charge to any point in mainland Spain.

Shipments to the Balearic Islands are quoted according to the order. The cost of these varies depending on the weight and volume of the material as well as the destination island.

Other destinations (Portugal, France and other destinations in the European Union): consult

Will I be able to track my order?

Once your order leaves our warehouse, we will send you the shipping information so that you can follow up with the agency and confirm the delivery details with them.

The specific delivery time of the order from the moment it leaves our warehouse depends largely on the transport company and the location of the destination. We can track it for you if you request it.
