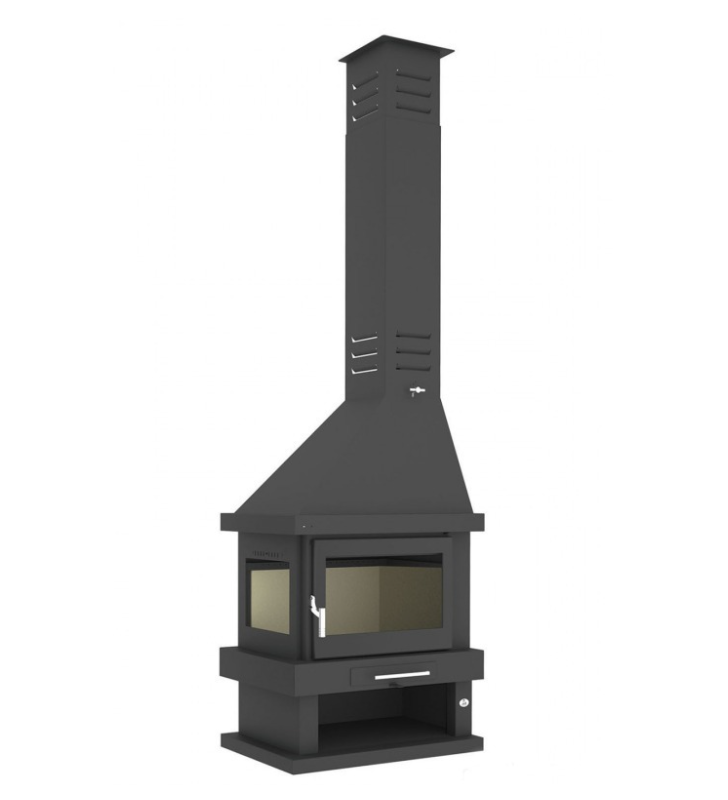

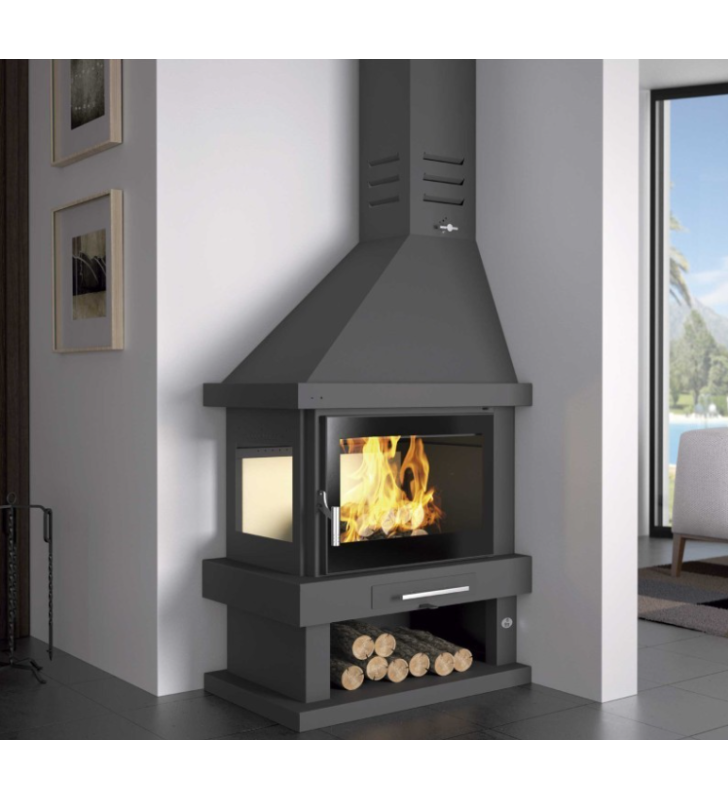

C-302 IK Metal Fireplace with Log Rack FM

FM C-302 IK Corner Wood Burning Fireplace

Almost every living room has an unused corner. The FM Heating C-302 IK is designed to fill it: its angled shape fits perfectly into the corner without taking up valuable floor space, and offers the look of a traditional fireplace without the need for masonry work . It boasts a nominal output of 10.4 kW for 295 m³ and an integrated log storage compartment beneath the firebox.

79% efficiency: stove figures

The interior of the combustion chamber is lined with vermiculite , a refractory material that reflects heat inwards instead of absorbing it, raising the combustion temperature. At these temperatures, the double combustion system burns the gases that would otherwise be lost through the flue. The result: 79% efficiency with a consumption of only 3.11 kg/h, figures closer to those of a stove than a conventional fireplace.

Very low emissions and Ecodesign certification

European Ecodesign regulations impose strict efficiency and emissions limits on solid fuel appliances. The C-302 IK comfortably meets these requirements: 0.10% CO₂ (at 13% O₂). In addition to its environmental benefits, this certification is often a requirement for accessing subsidies for heating equipment replacement.

Classic design with wood storage

Beneath the fireplace, the integrated log storage keeps the day's load visible and within easy reach. Besides eliminating the need for floor baskets, the stacked firewood contributes to the classic aesthetic of this model and dries out with the residual heat from the fire.

Double chamber and casting

The double chamber creates a volume of air around the firebox that retains heat and returns it to the room by convection, instead of letting it rise directly through the flue. The door and grille are made of cast iron , the material that best withstands repeated heating and cooling cycles without warping, and the body is constructed of steel up to 4 mm thick .

Fine combustion control

Independent primary and secondary air control allows you to adjust the combustion rate to match your chimney draft and the type of wood you use. The removable ash drawer allows you to empty the ashes by simply pulling out the tray, without soiling the floor.

Durable glass and finish

The screen-printed ceramic glass withstands temperatures up to 750°C , and the exterior is coated with heat-resistant paint that withstands temperatures up to 800°C . The total height of the unit is adjustable between 241.5 and 290 cm , a range of almost half a meter that covers virtually any domestic ceiling.

Main features

• Corner design that makes the most of the space
• Integrated woodshed with classic aesthetic
• Fireplace aesthetics without masonry work
• Vermiculite-coated inner chamber
• Cast iron door and grille
• Dual camera
• Steel body up to 4 mm thick
• Dual combustion system
• Removable ashtray drawer
• Primary and secondary air regulation
• Screen-printed vitroceramic glass up to 750 ºC
• Anti-heat paint up to 800 ºC
• Adjustable height from 241.5 to 290 cm
• Complies with Ecodesign regulations

Technical specifications

Before purchasing: check the orientation of the corner where you will install it, as this model is manufactured in left and right versions. Also measure your ceiling height: it must be between 241.5 and 290 cm. Ventilation requires a 200 mm diameter flue to the roof, and the safety distances from combustible materials specified by the manufacturer must be observed. We recommend that installation be carried out by a qualified professional.
