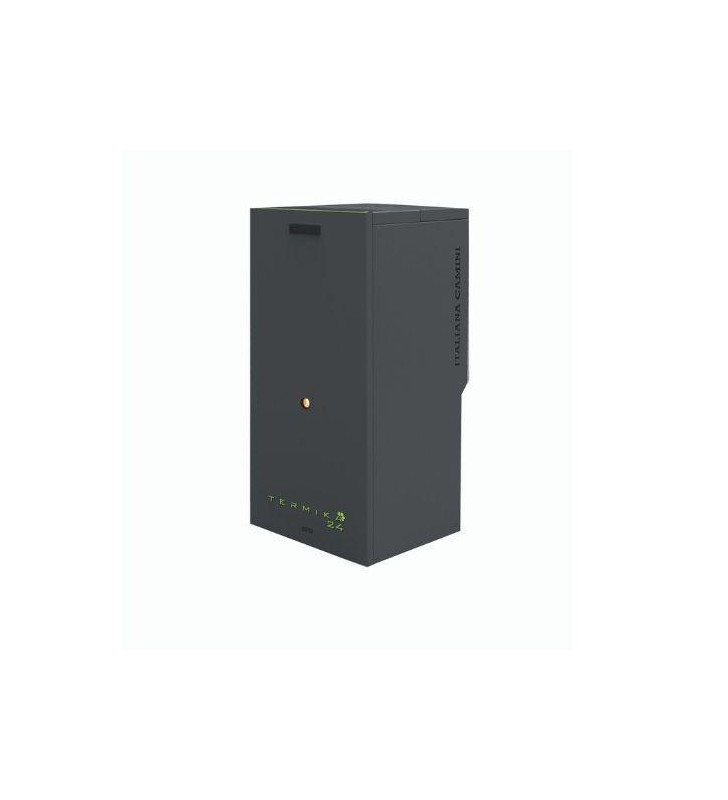

TERMIKA2 - 20 PELLET BOILER

When to choose a pellet boiler like the Termika2 20?

When we are looking for a boiler that, with minimum fuel costs, we want it to heat the whole house by burning pellets, which travel through the circuit of the radiators or underfloor heating panels. It has an autonomy of between 10 and 46 hours.

It has a rear smoke outlet with a diameter of 8 cm, a synoptic control panel to manage combustion and air speed, and can also be programmed on a daily and weekly basis. It includes the Autoclean function for automatic cleaning of the crucible and the Climate Comfort function, which turns off the boiler once it reaches the indicated temperature. It has a capacity of 40 liters of water, a closed expansion vessel that serves to absorb the increase in water pressure originating in the DHW or heating circuit when heating the water and a blue cable that controls the temperature from the thermostat.

Optionally, an anti-condensation valve can be added, which prevents condensation in the boiler during the process of heating the entire water in the circuit and allows the heating circuit to reach the indicated temperature in less time. An antenna kit can also be added for use in areas with poor signal reception.

A pellet boiler is the safest compared to other types of heating systems. Without a doubt, it offers good value for money.

Main features of the Termika2 20 pellet boiler

- Stove 550 x 780 x 131mm

- Foundry and steel home

- Useful power 21.5Kw

- Air power 1.4Kw

- Water power 20.1Kw

- Performance 93.5%

- Heatable volume of 525m3

- Heatable surface of 210m2

- Consumption 1.3 – 4.5Kg/h

- Stove ignition duration between 13 – 46h

- Pellet tank 60Kg / 94L

- Rear smoke outlet 80Ø mm

- Air intake 50Ø mm

- Stove weight 302Kg

- Daily and weekly schedule programmer

- Includes a synoptic panel that allows control of the stove parameters

- Fire Control system that properly regulates the amount of fuel

- AUTOCLEAN function for automatic cleaning of the crucible

- Climate Comfort Function, allows the stove to be turned off when the indicated temperature is reached

- Cold autocheck allows to detect possible problems

- Water content 40L

- Closed expansion vessel included

- Blue cable included to control the temperature from the thermostat

- Optional GSM Plus telephone combiner, which allows you to switch on and off remotely using your mobile phone

- Optional antenna kit, for use in areas with low signal reception

- Hot water accumulator and optional accessories for the installation and production of hot water.

- Steel tanks and optional accessories

- Optional anti-condensation valve, prevents condensation of the stove in the process of heating the total water of the circuit and allows the heating circuit to reach the indicated temperature in less time

- For correct operation, it is essential to install the following kits:

· Kit R for single heat source installation without domestic hot water production

· RW kit for single heat source installation with instant production of domestic hot water

· Kit R2 for combined installation with gas boiler and separator installation without domestic hot water production

· RW2 kit for combined installation with gas boiler and separator installation with domestic hot water production

How is the Termika2 20 pellet boiler supplied?

The pellet boiler is delivered with the rear smoke outlet prepared to operate with water.
