BP-100 C Pellet Stove FM

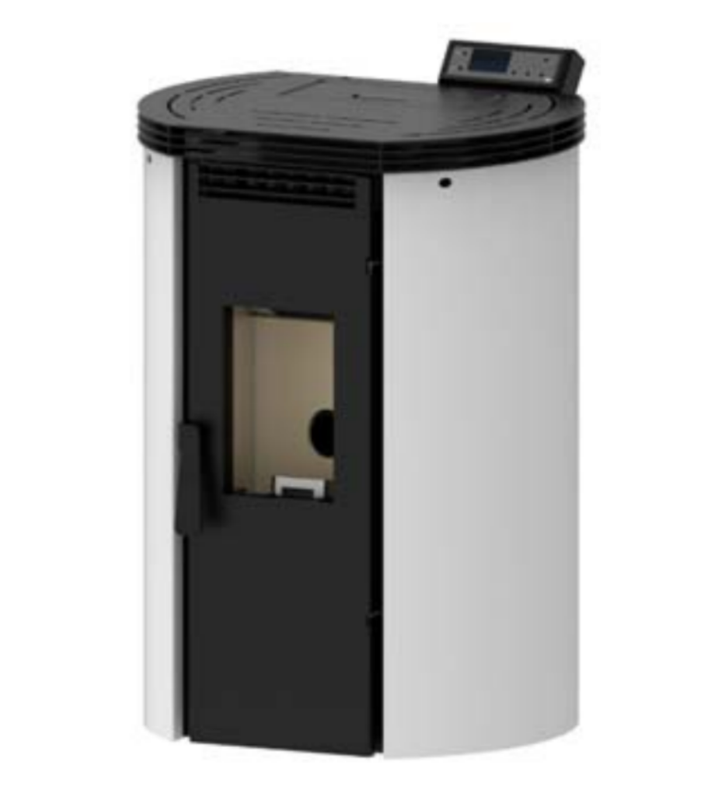

FM BP-100 C pellet stove

The FM Calefacción BP-100 C offers everything you'd expect from a modern pellet stove: up to 92% efficiency , automatic ignition, autonomous operation, and a sleek design that complements a contemporary living room. It boasts a maximum output of 9.8 kW for heating up to 230 m³ and is available in three finishes: white, black, and burgundy .

Three finishes to choose from

The epoxy- coated finish is available in white, black, and burgundy . White blends seamlessly into bright, Nordic-style interiors, black provides a striking contrast, and burgundy adds a touch of classic warmth. The same machine, three ways to integrate it into your home.

Up to 92% performance

Herein lies the decisive argument of pellets over firewood: an efficiency of 87% to 92% depending on the operating mode, far exceeding that of any wood-burning stove. And CO emissions of only 0.01 %-0 % , among the lowest allowed by current domestic technology. With consumption between 0.8 and 2 kg/h , the hourly heating cost is perfectly predictable.

Adjustable power from 4.7 to 9.8 kW

The stove modulates its power between 4.7 and 9.8 kW (nominal useful power from 4.3 to 8.5 kW). This range allows it to maintain a stable temperature instead of alternating between excessive heat and shutting off: on mild days it operates at minimum power, consuming less pellet, and on cold days it operates at full power.

Automatic ignition and 27-liter hopper

Automatic ignition eliminates the ritual of wood-burning: no firelighters, no paper, no waiting for it to catch fire. The 27-liter hopper provides enough fuel for several days of moderate use, so loading the stove is no longer a daily chore.

Cast iron heat exchanger

The unit is equipped with a cast iron heat exchanger , an unusual component in this category. Cast iron accumulates heat and releases it gradually, smoothing out the heating cycles and providing thermal inertia: the room remains warm for a while after the heater reduces its output. The interior of the combustion chamber is lined with vermiculite and painted with an 800°C inorganic heat-resistant coating.

Tangential fan of 265 m³/h

The 265 m³/h 43 W tangential fan draws warm air into the room, equalizing the temperature much faster than a purely radiant unit. You don't have to sit right next to the heater to feel the warmth.

Easy installation: outlet only 80 mm

The 80 mm diameter male flue outlet is the major practical advantage of pellet stoves over firewood. Unlike the 150 to 250 mm flues required for a wood-burning stove, pellet stoves only need a narrow pipe that can run along the facade or through an existing flue. This makes installation feasible in apartments and houses where a conventional stove would be unthinkable.

Clean glass and robust construction

The ceramic glass withstands temperatures up to 750°C and incorporates a clean-glass system , which delays soot buildup on the glass. The door has a ceramic sealing ring , and the body is constructed of steel up to 5 mm thick .

Main features

• Available in white, black and burgundy
• Performance of 87% to 92%
• Modular power from 4.7 to 9.8 kW
• Automatic ignition
• 27-liter hopper
• Cast iron heat exchanger
• Chamber interior in vermiculite
• Steel body up to 5 mm thick
• Door with ceramic glass cord
• Tangential fan of 265 m³/hy 43 W
• Crystal-clean system
• Vitreous ceramic glass up to 750 ºC
• Epoxy paint coating
• 800 ºC interior inorganic anti-heat paint
• Flue outlet of only Ø 80 mm
• Complies with Ecodesign regulations

Technical specifications
