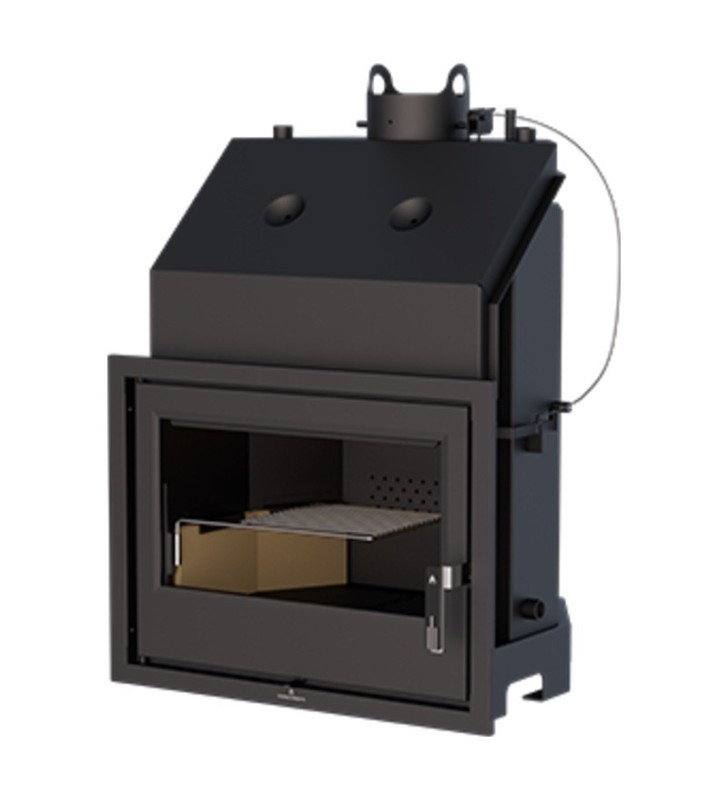

Tecno Hydrobronpi 70 insertable wood-burning hydro Bronpi
search
  • Tecno Hydrobronpi 70 insertable wood-burning hydro Bronpi
  • Tecno Hydrobronpi 70 wood boiler insert Bronpi
  • Tecno Hydrobronpi 70 wood boiler insert Bronpi
  • Tecno Hydrobronpi 70 wood boiler insert Bronpi

Tecno Hydrobronpi 70 wood boiler insert Bronpi


€1,708.00

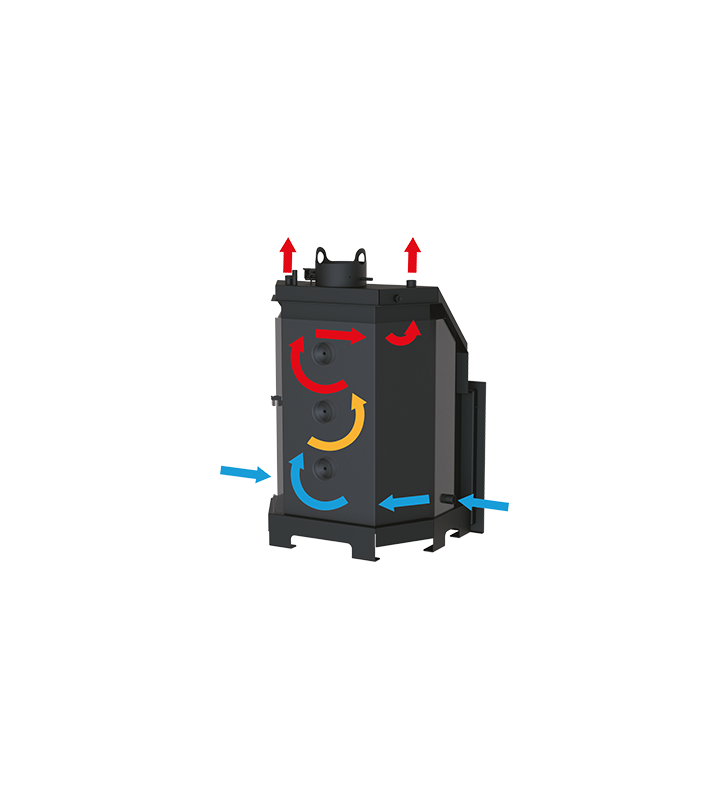

The Bronpi Tecno Hydrobronpi 70 is a wood-burning hydronic insert that heats the water for the central heating of the entire home, with a power output of up to 21 kW. It can supply water for up to 130 m² of underfloor heating or 93 radiator elements, and features a cast iron door and grate, a vermiculite interior, and a triple combustion system.

Kit Estanqueidad Tecno-Hydro
Thermal discharge valve
Anti-condensation valve
Thermostatic cooling valve
Delivery in 7–10 business days

Use the discount code EXPO

Valid on non-discounted products.

qty

Rating:
(0)


Security policy



Delivery policy



Return policy

• 70cm hydro insertable.

• Maximum power of 21 kW.

• Cast iron door and grill.

• Interior lined with vermiculite.

• Adjustable draft diverter valve.

• Includes 3 bar overpressure valve.

• Regulation of primary combustion air.

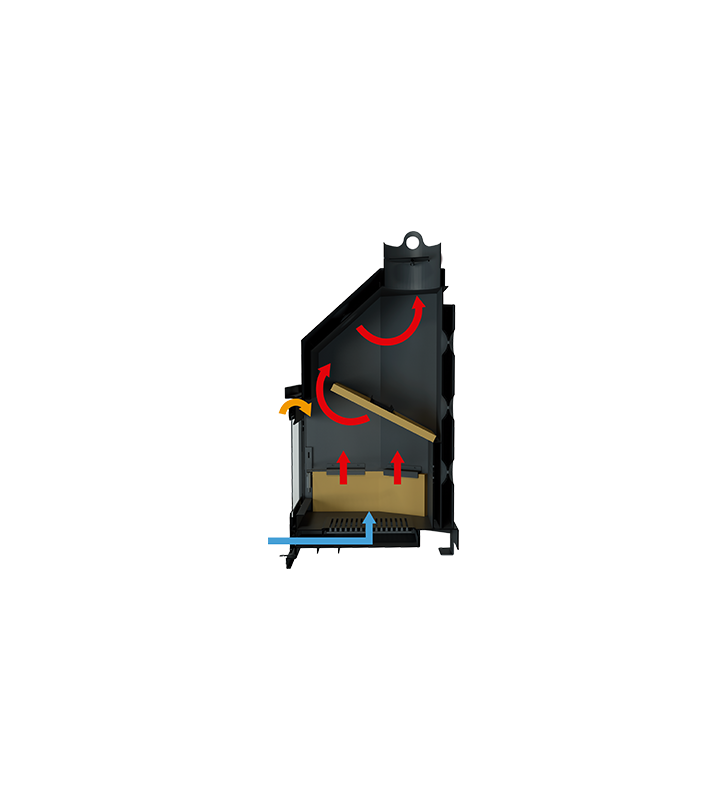

• Triple combustion system.

• Tank capacity of 70 liters.

• Working pressure of 1.5 bar.

• Includes a 4-sided frame as standard.

• Includes a removable, rotating and height-adjustable grill.

• Removable front ashtray drawer for easy cleaning.

• Includes glove and paint spray.

Options for configuring your insert:

• Sealing kit: without kit, with sealing kit or with airtight kit with thermostatic draft regulator.

Valves for hydraulic installation:

• Thermal discharge valve VAL-01: safety valve that, when the water in the equipment exceeds the maximum temperature, allows cold water from the mains to enter and evacuates the hot water, preventing overheating.

• Anti-condensation valve VAL-02 3x1" or VAL-03 3x1 1/4": maintains the return water at a minimum temperature to prevent condensation and tar buildup inside the stove body, extending its lifespan. The choice depends on the diameter of the installation pipes.

• VAL-05 two-way thermostatic cooling valve: additional safety system that cools the equipment by allowing cold water to pass through when the water reaches an excessive temperature.

Each valve can be added or not when configuring the product.

Bronpi
TECNO-HYDROBRONPI-70
10 Items

Data sheet

Fuel
Leña
Nominal power
19 kW
Power range
7 a 21 kW
Heatable volume
475 m3
Performance
84%
Useful power of water
14 a 5 kW
Consumption
4,9 kg/h
Flue outlet diameter
20 cm
Maximum log size
60 cm
Fire mouth dimensions (L x W x H)
642 x 315 x 450 mm
Weight
175 a 178 kg
Materials
Acero y fundición
Interior material
Vermiculita
Maximum working pressure (bar)
1,5 bar de trabajo, 2,4 bar máximo
Dual Combustion
Triple combustión
Heatable surface
Hasta 130 m2 de suelo radiante o 93 elementos de radiador
Water content
70 litros
