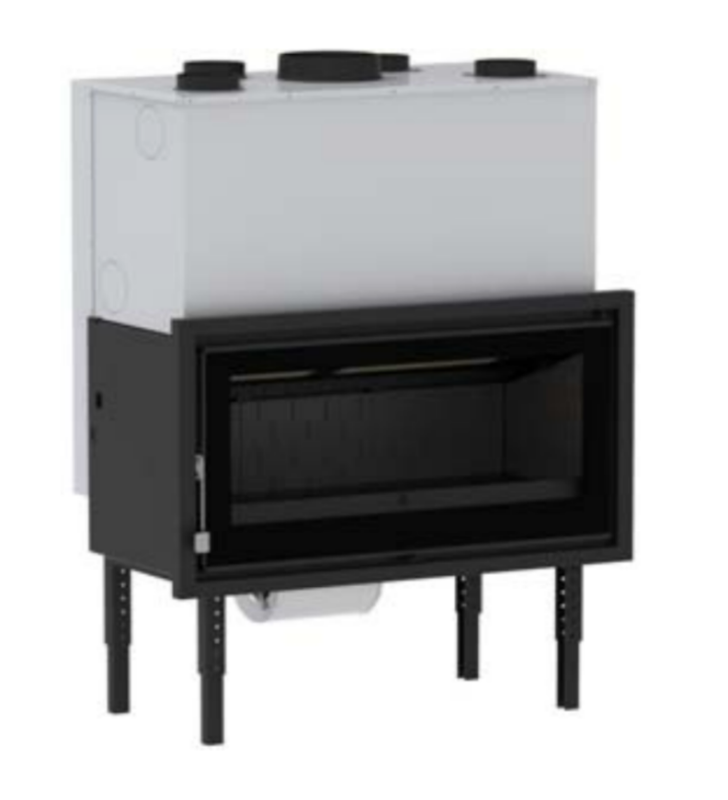

IC-100 FKC Traditional Wood Burning Stove FM

Panoramic wood-burning insert with hood FM IC-100 FKC

An open masonry fireplace wastes most of the heat up the flue and consumes a lot of firewood. The IC-100 FKC insert from FM Calefacción solves this problem without sacrificing the fireplace: it fits into the existing opening and transforms it into a closed 17.9 kW unit capable of heating 390 m³ with an 81% efficiency . And with a panoramic opening that gives the fire more presence than ever before.

Panoramic opening of 93 cm

The door is 930 mm wide and accommodates logs up to 88 cm long , an exceptional size. This means two things: you can buy firewood in any commercially available format without cutting it, and the flame spreads across the entire width of the opening. The visual result is that of an open fireplace, but with the performance of a closed system.

900 m³/h turbine with two ductable outlets

The unit includes a kit with a 900 m³/h 112 W centrifugal turbine , a much higher airflow than a conventional tangential fan. This powerful airflow feeds two 80 mm ducts with independent airflow control : you can direct the heat to other rooms and decide how much air goes to each one. The three-position switch regulates the airflow, and in position 0, operation is automatic : the turbine starts automatically when the temperature is reached and stops when it cools down.

Casting throughout the chamber and 5 mm sheet metal

Unlike vermiculite-lined models, this one features a cast iron combustion chamber , door, and grate. Cast iron is the material with the highest thermal inertia: it accumulates heat during combustion and continues to release it even as the fire dies down. The body is constructed from sheet metal up to 5 mm thick , a greater thickness than is typical for this range.

Double and triple combustion: 81% efficiency

Double and triple combustion systems reburn gases that would otherwise escape unused in an open fireplace. The result is an 81% efficiency with a fuel consumption of 3.98 kg/h and CO emissions of only 0.10% , well below the Ecodesign regulations.

Adjustable deflector and draft diverter valve

The adjustable internal baffle allows you to adjust the flow of smoke within the chamber, and the draft diverter valve controls the flue's draft. Along with the primary air regulator , these three levers allow you to adapt the unit to the actual draft of your chimney, which is what determines whether an installation functions correctly or not.

Clean glass and a durable finish

The screen-printed ceramic glass withstands temperatures up to 750°C and incorporates a clean-glass system : an air curtain sweeps across the interior surface of the glass, delaying soot buildup, which is especially important on such a large glazed area. The exterior is coated with inorganic heat-resistant paint that withstands temperatures up to 800°C .

Main features

• Panoramic insert with hood
• Accepts logs up to 88 cm
• Interior of camera, door and cast iron grate
• Body made of sheet metal up to 5 mm thick
• Dual camera
• Double and triple combustion systems
• Kit with centrifugal turbine of 900 m³/hy 112 W
• 3-position switch with automatic adjustment in position 0
• 2 ductable 80mm tubes with air regulation
• Adjustable interior deflector
• draft diverter valve
• Primary air regulation
• Crystal-clean system
• Screen-printed vitroceramic glass up to 750 ºC
• Inorganic heat-resistant paint up to 800°C
• Complies with Ecodesign regulations

Package contents

• IC-100 FKC wood burning insert with hood
• Centrifugal turbine kit
• Glove
