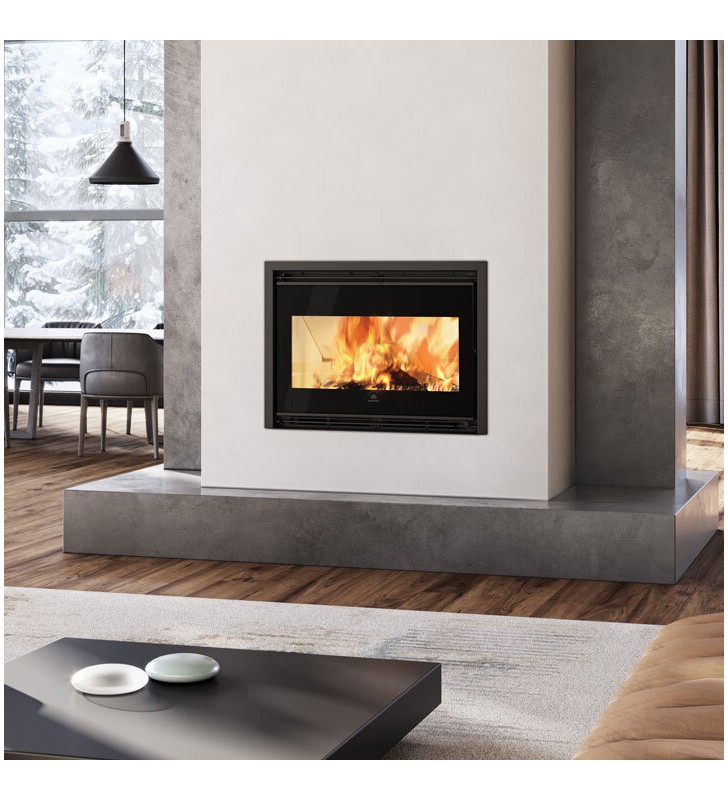

EDILKAMIN EVO 65 INSERTABLE WOOD-BURNING FIREBOX

€2,590.00

A ducted wood-burning insert, ideal for restoring old open fireplaces or creating new ones, characterized by a sober and essential elegance.

• Fireplace in white or black Ecokeram, cast iron base
• smoke outlet Ø 20 cm upper
• Hot air can be channeled into 2 adjacent rooms (optional kit)
• glass cleaning system
• post-combustion
• Practical handles for transport and installation
• reversible door (during assembly, it can be installed with the door opening to the left or right)
• N version (natural convection)
• Version V (forced ventilation) complete with: 2 fans + touch electronic control unit and remote control

Convection box
qty

compare
Rating:
(0)

Minimum price guaranteed


Security Policy



Delivery Policy



Return Policy

OPTIONAL


• AIR DIFFUSER KIT
• Ducting kit
• Pipeline mouths
• Ventilated ductwork inlets
• Support easel

• External air intake kit

Technical data min/max
long cm 83
depth cm 54
height cm 64
fire mouth measurement (L x D x H) cm 71x34.5x35.5
useful power kW 14.9
performance % 85.1
fuel consumption (firewood) kg/h 3.8
Ø smoke outlet cm 20
Ø air intake cm 8
weight kg 176
heatable volume m³ 390

OPERATING PRINCIPLE AND INDICATIVE CHARACTERISTICS

These are devices designed to produce hot air by burning wood.

They are ideal fireplaces for renovating an old, poorly functioning fireplace, transforming it into a real heating appliance.

Also suitable for creating special solutions from scratch, according to the most varied ambiance needs.

They are delivered pre-assembled, ready to use, after simple connection to the flue and air intake.

Ambient or outside air circulates in the gap between the hearth and the cladding. Upon entering from the base, it warms up along the walls before entering the room.
The hot air is distributed in the installation environment through the grilles located on the front and can also be channeled to neighboring environments through pipes.

Hot air distribution is possible through natural convection or forced convection via fans. In the case of forced distribution, a regulator is used to modulate the air speed based on its temperature.

The amount of combustion air, which can be primary, secondary (for glass cleaning) or tertiary (post-combustion), can be regulated by means of dampers.



INDICATIVE OPERATING DIAGRAM


Consult the specific diagrams for each model in the technical sheet attached to the product.



il_t1_01.jpg?1448271958

1 = heavy gauge cast iron hearth

2 = secondary combustion air and glass cleaning damper

3 = holes on the back of the hearth for the introduction of post-combustion air

4 = two-speed fans, with temperature probe

5 = switch for automatic circulation (2 speeds) of hot air

6 = automatic control of the smoke damper, activated by the opening of the fireplace door

7 = flue gas outlet flange for connection to the flue

8 = external air intake mechanism (optional)

9 = grille sending hot air to the environment

10 = ambient air return grilles

11 = flanges for channeling hot air to surrounding environments

12 = heating air circulation gap
