S-60 Carbel wood insert


€1,358.84

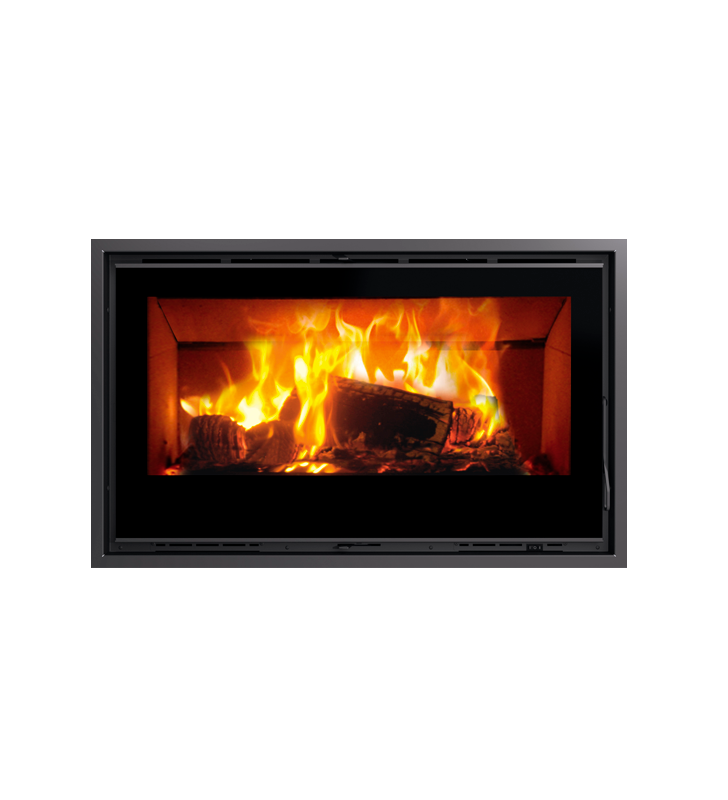

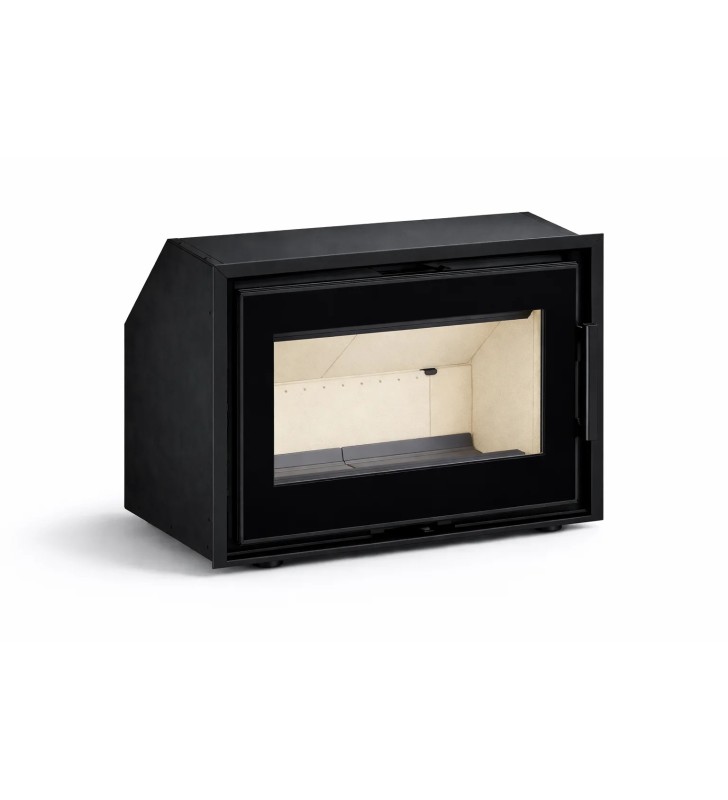

The Carbel S-60 wood-burning insert is a compact, natural convection model with an included 2.5 cm four-sided frame, a nominal power of 4.4 kW, and an 85% efficiency rating (energy class A+). Optional features include a ventilation kit with fans and a leg kit for mounting.

Leg and bracket kit
Ventilation

Use the discount code EXPO10

Valid on products without a discount. Shipping to Spain, France, Italy and Belgium.

qty

Rating:
(0)


Security policy



Delivery policy



Return policy

• Nominal power: 4.4 kW

• Yield: 85%

• CO emission (at 13% O₂): 728 mg/Nm³

• Energy efficiency class: A+

• Dimensions of the insert (width x height x depth): 584 x 354 x 479 mm

• Flue outlet diameter: Ø 130 mm

• Weight: 68 kg

• Recommended log length: 25 cm

• 2.5cm 4-sided frame included

• Thermic combustion chamber

• Natural convection: convection chamber surrounding the hearth

• Primary and secondary air regulation

• Fuel: dry hardwood with less than 20% moisture

• Ventilation kit option: convection fans with three-position switch (automatic from 50°C, low speed and high speed) to better distribute heat.

• Optional leg kit for assembly: adjustable legs and fixing brackets for installing and leveling the insert.

S60_THERMIC
10 Items

Data sheet

Broad
584 mm.
Height
354 mm.
Depth
479 mm.
Pipe diameter
130 mm.
Performance
85%
Nominal / maximum power
4.4 Kw.
Weight
68 Kg.
