Carbel T2-80 wood insert


€1,319.40

The Carbel T2-80 wood insert is a panoramic natural-convection model with a vermiculite combustion chamber, 9.5-13 kW nominal/maximum output and 85.09% efficiency. It can be completed with finishing frames, an Eco Silent turbine or box to force the hot air, convection diffusers and a leg kit.

Leg and bracket kit
Ventilation
First Frame
Convection diffusers
qty

Rating:
(0)


Security policy



Delivery policy



Return policy

• Supplier reference: T280VER

• Nominal / maximum output: 9.5-13 kW

• Efficiency: 85.09%

• CO emission: 0.09%

• Dimensions (width x height x depth): 782 x 592 x 477 mm

• Flue outlet diameter: Ø 150 mm

• Weight: 109 kg

• Natural convection: no forced ventilation as standard

• Vermiculite combustion chamber

• Panoramic glass with clean-glass system

• Airtight combustion

• Fuel: wood

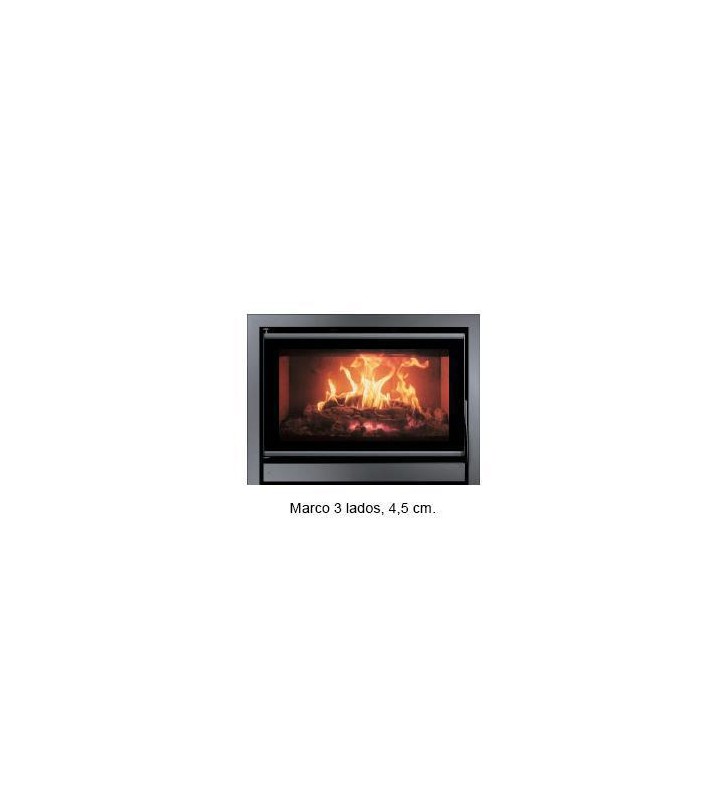

• 3-sided frame option, 4.5 cm (M3L80): trims the sides and top of the opening and leaves the lower side open.

• 4-sided frame option, 4.5 cm (M4L80): trims all four sides of the opening with a 4.5 cm border.

• Slim 4-sided frame option, 2.5 cm (M4LK80T80): narrower four-sided trim, 2.5 cm, for a discreet finish.

• 4-sided glass frame option, 5.5 cm (MCRIS80I): glass front frame, 5.5 cm, for a design finish.

• Legs and brackets mounting kit option (JGOPEHOG): lets you install and level the insert with adjustable legs and fixing brackets.

• Eco Silent turbine option with control panel and remote (TURECO): adds quiet forced ventilation to the insert, adjustable from the remote.

• Eco Silent box option with control panel and remote (BOXECO): ventilation box with a quiet turbine that forces and distributes the hot air, adjustable from the remote.

• 2-outlet anthracite grey diffuser option (A1823) or 4-outlet (A1822): convection outlets that carry hot air to other rooms.

• Made-to-measure 3- or 4-sided frame (MAM3L / MAM4L): custom-made, available to order; ask for availability and price.

T280VER
10 Items

Data sheet

Broad
782 mm.
Height
592 mm.
Depth
477 mm.
Pipe diameter
150 mm.
Performance
85.09%
Interior material
Vermiculite
Nominal / maximum power
9.5-13 Kw.
Made in
Steel
Sealed combustion
Yeah
Clean Glass System
Yeah
Delivery time
72 hours
CO Rate
0.09%
Weight
109 Kg.

Specific References

FAQ - Frequently asked questions about Carbel T2-80

Features of Carbel T2-80

How hot will my Carbel T2-80 get?

The Carbel T2-80 turbine model has sealed combustion and a clean glass system

Its optimum power (nominal with an efficiency of 85.09%) is 9.5 kW. At maximum operating power it reaches 13 kW.

What advantages does the external air intake of my Carbel T2-80 provide?

In a sealed stove with an air intake connected to the outside, the combustion air is taken directly from outside the home. In this way, its oxygenation level remains intact.

In addition, the need to ventilate to renew the air is avoided. In addition, we largely eliminate interference that other air currents can generate inside the house, such as those caused by the kitchen extractor fan.

What is vermiculite? What are its benefits?

Vermiculite is a mineral-based material that stands out for its extraordinary thermal properties. Vermiculite allows for greater efficiency (ratio between the amount of wood consumed and the heat generated) than metal interiors. Vermiculite also stands out for heating up more quickly than traditional cast iron interiors and for providing a very bright fire.

The high temperature developed with the help of vermiculite contributes to generating very low levels of emissions, little residue in the form of ash and the capacity for pyrolytic self-cleaning (that is, by developing sufficient temperature in the combustion chamber the material will remain the same light colour as it was originally).

Advice for the installation of my Carbel T2-80

You can call us by phone and we will explain to you or your trusted bricklayer all the details and requirements for a correct installation.

We can also advise you on the smoke extraction pipe, as well as provide you with a quote and supply it at a special discount.

As our customer, you benefit from a 10% discount on the prices you will see on our pipe website expochimeneas.com/tienda.

During installation and use, you can count on the support and advice of our specialists through telephone contact, email or WhatsApp.

Carbel warranty and extended coverage Expochimeneas

What coverage does the warranty offered by the manufacturer Carbel have?

Carbel guarantees that the cast iron or steel exterior parts of the product are free from defects in materials or workmanship. This guarantee covers a period of 2 years from the date of purchase.

The Carbel guarantee does not cover the repair or replacement of parts subject to normal wear and tear, such as combustion plates, grates, smoke deflectors, interior parts with fire and moving parts such as handles or knobs. The guarantee also does not cover broken glass or wear and tear on door and glass cords.

You can see the full text of the Carbel guarantee from the following link.

What is the Expochimeneas extended warranty?

Although the legal guarantee of the product is provided by the manufacturer, buying at Expochimeneas benefits from a series of advantages and added services. Management of incidents with manufacturers, advantageous conditions for the acquisition of spare parts out of warranty. Ask a sales advisor for information.

Offers, special discounts and financing

How to pay for Carbel T2-80 at Expochimeneas?

You can pay by transfer or credit card through our secure payment gateway

Payment by Paypal or cash on delivery is not accepted.

Can I get a discount?

You can request a Carbel T2-80 discount or gift coupon from the following form

Can I finance the purchase of my Carbel T2-80?

All offers are valid for cash payment (transfer or credit card)

You can finance Carbel T2-80 for up to 12 months without interest. Free financing is not compatible with any other offer or discount

Shipping and delivery times

What is the delivery time of Carbel T2-80?

We have stock in our warehouse and immediate availability for Carbel T2-80. The delivery time will be between 3 and 6 business days depending on the destination.

Are there any shipping costs if I buy Carbel T2-80 at Expochimeneas?

Shipping of Carbel T2-80 is free to any point in mainland Spain

Shipments to the Balearic Islands are quoted according to the order. The cost of these varies depending on the weight and volume of the material as well as the destination island.

Other destinations (Portugal, France and other destinations in the European Union): consult

Will I be able to track my order?

Once your order leaves our warehouse, we will send you the shipping information so that you can follow up with the agency and confirm the delivery details with them.

The specific delivery time of the order from the moment it leaves our warehouse depends largely on the transport company and the location of the destination. We can track it for you if you request it.

No customer reviews for the moment.

Write your review

Carbel T2-80 wood insert

The Carbel T2-80 wood insert is a panoramic natural-convection model with a vermiculite combustion chamber, 9.5-13 kW nominal/maximum output and 85.09% efficiency. It can be completed with finishing frames, an Eco Silent turbine or box to force the hot air, convection diffusers and a leg kit.
