Bronpi Lisboa-3c Vision
search
  • Bronpi Lisboa-3c Vision

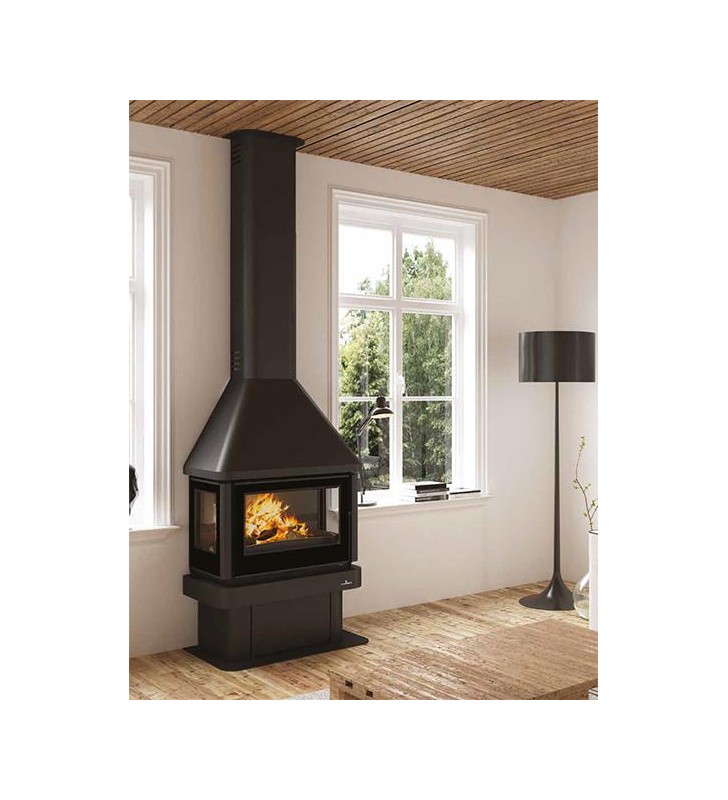

Lisboa 3C Vision wood burning fireplace Bronpi


€1,810.00

The Lisbon 3C Vision by Bronpi is a wood-burning fireplace (three-pane fireplace with turbine and log storage) with a nominal power of 10 kW, capable of heating up to 250 m³. Its advantages include: triple combustion, the possibility of ducting the air, and cast iron components.

Outdoor Air Intake
Delivery in 7–10 business days

Use the discount code EXPO

Valid on non-discounted products.

qty

Rating:
(0)


Security policy



Delivery policy



Return policy

• Nominal power: 10 kW (range 13 - 4.2 kW).

• Silent. Possibility of total turbine disconnection.

• Includes 290 m3/h turbine with two-speed switch.

• Regulation of primary and secondary combustion air.

• Triple Combustion System.

• Can be converted into a ductable system – (includes 2 outlets to duct air up to 3 meters).

• Height-adjustable trim (2430 – 2900 mm). Other sizes available upon request.

• Door, grill and interior made of cast iron.

• Includes a removable, rotating and height-adjustable grill.

• Wood storage cabinet with door.

• Removable front ashtray drawer for easy cleaning.

• Includes glove and paint spray.

• Usable opening dimensions: 580x306x286 mm.

• Logs up to 55 cm.

Options for configuring your fireplace:

• External air intake kit (KIT-AIR-2): allows combustion air to be taken from the outside and makes the appliance airtight.

Bronpi
LISBOA-3C VISION
10 Items

Data sheet

Broad
822 mm.
Pipe diameter
150 mm.
Performance
75%
Weight
201 Kg.
Interior material
Foundry
Dual Combustion
Yeah
Height
2900 mm.
Depth
550 mm.
Declared power
12 kW.
Silent (disableable turbine)
Yeah
Made in
Foundry and Steel
Clean Glass System
Yeah
Trunk length
55 cm.
Forced Air
1x Turbine 290m³/h

Specific References

FAQ - Frequently asked questions about Bronpi Lisboa-3C Vision

Features of Bronpi Lisboa-3C Vision

How much will my Bronpi Lisboa-3C Vision heat?

The Bronpi Lisboa-3C Vision metal fireplace model has double combustion and a clean glass system

Its optimum power (nominal with 75% efficiency) is 12 kW.

What does it mean that my Bronpi Lisboa-3C Vision has double combustion?

The double combustion of the Bronpi Lisboa-3C Vision model is an additional contribution of preheated air in the upper part of the combustion chamber that allows the burning of all the particles that have not been burned in the area where the fuel is and that - in a device that did not have this system - would be ash, soot in the tube or particle emissions into the atmosphere.

This over-oxygenation produces a burning of all these particles of material that would normally be waste.

Visually, we see an additional fire of great beauty, which will translate into greater heating power at lower consumption, that is, greater performance. The performance data measures the burning efficiency.

A double combustion stove is more ecological and environmentally friendly due to its lower emission level and lower fuel consumption.

Advice for the installation of my Bronpi Lisboa-3C Vision

You can call us by phone and we will explain to you or your trusted bricklayer all the details and requirements for a correct installation.

We can also advise you on the smoke extraction pipe, as well as provide you with a quote and supply it at a special discount.

As our customer, you benefit from a 10% discount on the prices you will see on our pipe website expochimeneas.com/tienda.

During installation and use, you can count on the support and advice of our specialists through telephone contact, email or WhatsApp.

Bronpi warranty and extended coverage Expochimeneas

What coverage does the warranty offered by the manufacturer Bronpi have?

Bronpi guarantees that the cast iron or steel exterior parts of the product are free from material or manufacturing defects. This guarantee covers a period of 2 years from the date of purchase.

Bronpi's warranty does not cover the repair or replacement of parts subject to normal wear and tear, such as combustion plates, grates, smoke deflectors, interior parts with fire and moving parts such as handles or knobs. The warranty also does not cover broken glass or wear and tear on door and glass cords.

You can see the full text of the Bronpi guarantee from the following link.

What is the Expochimeneas extended warranty?

Although the legal guarantee of the product is provided by the manufacturer, buying at Expochimeneas benefits from a series of advantages and added services. Management of incidents with manufacturers, advantageous conditions for the acquisition of spare parts out of warranty. Ask a sales advisor for information.

Offers, special discounts and financing

How to pay for Bronpi Lisboa-3C Vision at Expochimeneas?

You can pay by transfer or credit card through our secure payment gateway

Payment by Paypal or cash on delivery is not accepted.

Can I get a discount?

You can request a Bronpi Lisboa-3C Vision discount or gift coupon from the following form

Can I finance the purchase of my Bronpi Lisboa-3C Vision?

All offers are valid for cash payment (transfer or credit card)

You can finance Bronpi Lisboa-3C Vision for up to 12 months without interest. Free financing is incompatible with any other offer or discount

Shipping and delivery times

What is the delivery time for Bronpi Lisboa-3C Vision?

We do not have Bronpi Lisboa-3C Vision in stock in our own warehouse. Availability will depend on the manufacturer Bronpi. Call us or write us a form and we will detail the actual delivery time.

Are there any shipping costs if I buy Bronpi Lisboa-3C Vision at Expochimeneas?

Bronpi Lisboa-3C Vision is shipped free of charge to any point in mainland Spain.

Shipments to the Balearic Islands are quoted according to the order. The cost of these varies depending on the weight and volume of the material as well as the destination island.

Other destinations (Portugal, France and other destinations in the European Union): consult

Will I be able to track my order?

Once your order leaves our warehouse, we will send you the shipping information so that you can follow up with the agency and confirm the delivery details with them.

The specific delivery time of the order from the moment it leaves our warehouse depends largely on the transport company and the location of the destination. We can track it for you if you request it.
