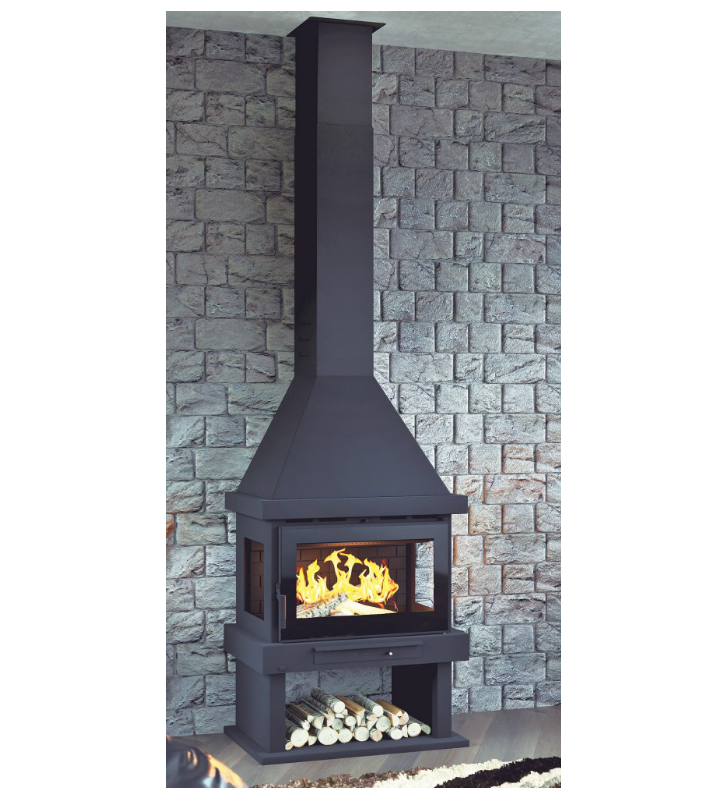

C-303 TFK Three-Sided Metal Fireplace with Log Rack FM

FM C-303 TFK wood-burning fireplace with turbine

A brick fireplace involves a project, builders, weeks of dust, and a budget that's almost never met. The C-303 TFK from FM Calefacción offers the same aesthetic result—fireplace, hood, and flue integrated into a single unit that spans the wall from floor to ceiling— without any masonry work . It arrives fully assembled and can be installed in a day.

Casting throughout the chamber

The combustion chamber interior, door, and grate are made of cast iron . It is the material with the highest thermal inertia: it accumulates heat during combustion and continues to release it when the fire dies down, in addition to withstanding years of heating and cooling cycles without deforming.

Door with ceramic cord

The door has a ceramic sealing ring , a detail that makes all the difference in combustion control: it seals the door so that all the air enters through the channels you control with the regulators, and not through gaps. With a well-sealed door, the wood burns at the rate you set, not at the rate dictated by the draft.

Telescopic trim: adapts to your roof

The telescopic trim on the outlet pipe adjusts the overall height of the unit between 241.5 and 290 cm . This range of almost half a meter covers virtually any domestic ceiling height, so you don't need custom-made parts or makeshift finishing touches: the finish is clean from day one.

Tangential fan of 265 m³/h

A fireplace without forced ventilation heats up quickly in front of it but not much in the rest of the room. The 265 m³/h 43 W (220 V) tangential fan draws warm air into the room, equalizing the temperature much faster. It features a two-speed switch and an off position (0), allowing you to choose between power or quiet operation depending on the situation.

Draft diverter valve and combustion control

The draft diverter valve allows you to regulate the flue's draft: essential for controlling the combustion rate and preventing the wood from burning too quickly in systems with strong draft. Together with the independent primary and secondary air controls and the double combustion system , it gives you fine-tuning how and how much each load burns.

Rotating barbecue grill included

The C-303 TFK doesn't just heat up: it comes with a 310 x 300 mm stainless steel rotating grill . Cook meat, vegetables, or fish using the heat of the wood, without installing anything else.

Clean glass and easy cleaning

The screen-printed ceramic glass withstands temperatures up to 750°C and incorporates a clean-glass system : an air curtain sweeps across the interior of the glass, delaying soot buildup. The removable ash drawer allows for easy emptying of the ashes by simply pulling out the tray, without soiling the floor. The exterior is coated with inorganic heat-resistant paint that withstands temperatures up to 800°C .

Main features

• Fireplace aesthetics without masonry work
• Adjustable telescopic trim from 241.5 to 290 cm
• Interior of chamber, door and cast iron grill
• Door with ceramic sealing ring
• Removable ashtray drawer
• Tangential fan 265 m³/h 43 W (220 V)
• Two-speed switch with off mode
• draft diverter valve
• Dual combustion system
• Primary and secondary air regulation
• Crystal-clean system
• Screen-printed vitroceramic glass up to 750 ºC
• Inorganic heat-resistant paint up to 800°C
• Complies with Ecodesign regulations

Package contents

• C-303 TFK wood-burning fireplace with telescopic trim
• Rotating stainless steel barbecue grill (310 x 300 mm)
• Glove

Technical specifications

Before purchasing: Measure your ceiling height and ensure it falls within the range of 241.5 to 290 cm; outside this range, the unit will not fit. The fan requires a 220V power outlet near the unit. Ventilation requires a 200 mm diameter duct to the roof, and the manufacturer's safety distances from combustible materials must be observed. We recommend professional installation.

The Ø 200 mm tubes, elbows and cap are sold separately.
