C-300 RH Corner Metal Fireplace FM

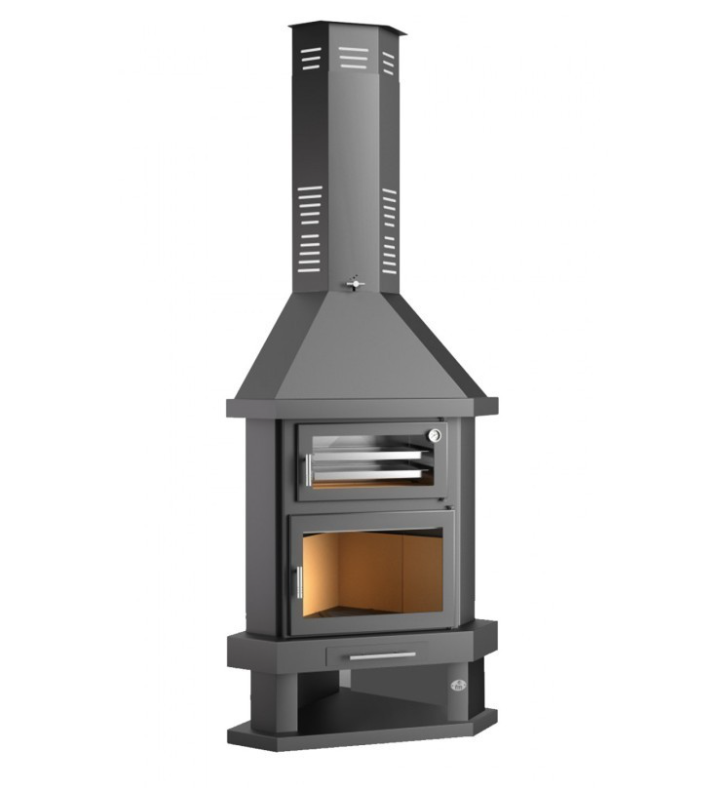

Corner wood-burning fireplace with oven FM C-300 RH

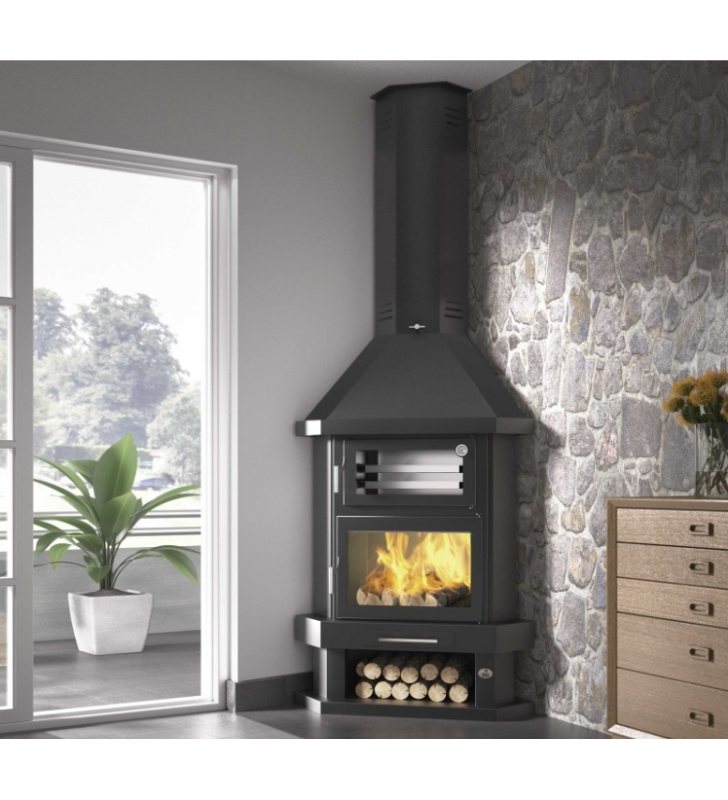

Almost every living room has an unused corner. The FM Calefacción C-300 RH is designed to fill that space and, moreover, to allow for cooking: it combines a corner design with a wraparound stainless steel oven . It offers the aesthetic of a built-in fireplace without the masonry work, with a nominal output of 10.4 kW for 295 m³ .

Stainless steel wrap-around oven

This is a top-mounted, surround oven : hot fumes circulate around the oven before escaping through the flue, resulting in even cooking on all sides instead of heating only from below. The interior is made of stainless steel , which is more hygienic and easier to clean than painted steel, and the refractory brick base retains and distributes heat evenly—just what a good loaf of bread or a roast needs. The integrated probe thermometer allows you to monitor the temperature without opening the door.

79% efficiency and very low emissions

The interior of the combustion chamber is lined with vermiculite , a refractory material that reflects heat inwards instead of absorbing it, raising the combustion temperature. At these temperatures, the double combustion system burns the gases that would otherwise be lost through the flue. The result: 79% efficiency with a consumption of only 3.11 kg/h and CO emissions of 0.10% (at 13% O₂), figures closer to those of a stove than a conventional fireplace.

Double chamber and casting

The double chamber creates a volume of air around the firebox that retains heat and returns it to the room by convection, instead of letting it rise directly through the flue. The door and grille are made of cast iron , the material that best withstands repeated heating and cooling cycles without warping, and the body is constructed of steel up to 4 mm thick .

Everything you need to cook, including

No need to buy separate accessories: the unit comes with a 500 x 300 x 60 mm stainless steel tray that fits the oven and a 500 x 300 mm stainless steel rotating grill . Cook meat, vegetables, fish, or bread using the heat of the wood fire, without installing anything else.

Fine control and easy maintenance

Independent primary and secondary air control allows you to adjust the combustion rate to match your chimney draft and the type of wood. The removable ash drawer allows you to empty the ashes by simply pulling out the tray, without soiling the floor.

Durable glass and finish

The ceramic glass withstands temperatures up to 750°C , and the exterior is coated with heat-resistant paint that withstands temperatures up to 800°C . The total height of the unit is adjustable between 241.5 and 290 cm , a range that covers virtually any standard ceiling.

Main features

• Corner design that takes advantage of the angle of the living room
• Top-enclosed oven
• Oven interior in stainless steel
• Oven base made of refractory brick
• Integrated pod thermometer
• Fireplace aesthetics without masonry work
• Vermiculite-coated inner chamber
• Cast iron door and grille
• Dual camera
• Steel body up to 4 mm thick
• Dual combustion system
• Removable ashtray drawer
• Primary and secondary air regulation
• Vitreous ceramic glass up to 750 ºC
• Anti-heat paint up to 800 ºC
• Adjustable height from 241.5 to 290 cm
• Complies with Ecodesign regulations

Package contents

• Corner wood-burning fireplace with oven C-300 RH
• Stainless steel baking tray (500 x 300 x 60 mm, 0.8 mm thick)
• Rotating stainless steel barbecue grill (500 x 300 mm)
• Glove
