Firepocket 60 Evo wood insert Edilkamin


€1,450.00

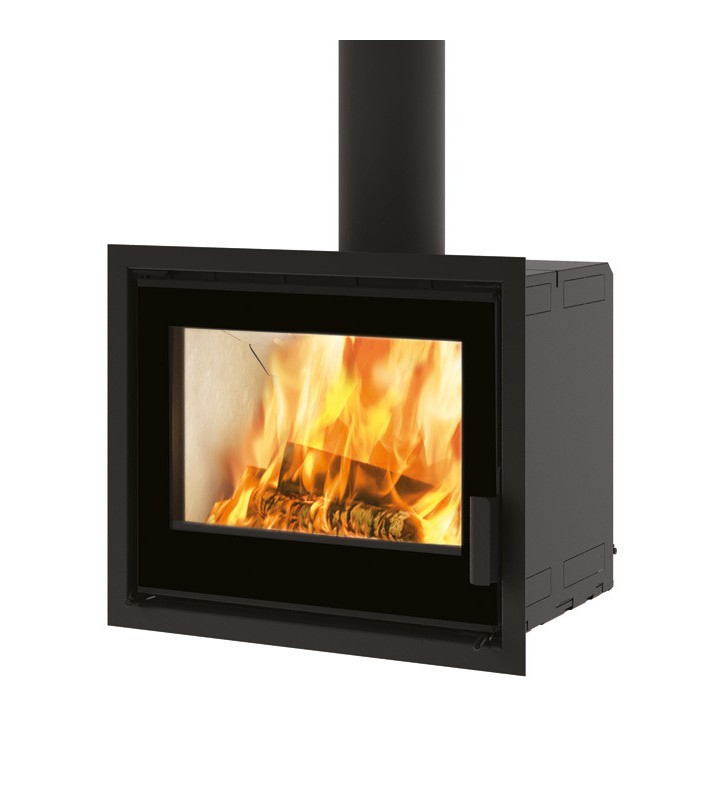

The Edilkamin Firepocket 60 Evo is a ducted wood-burning insert with a large 57.5 x 45 cm glass panel offering a panoramic view of the flames. With 7 kW of heat output and 90.5% efficiency, it heats up to 180 m³. You can choose between a cast iron or vermiculite firebox, and its tangential fan with touch control can be deactivated for natural convection heating. The reversible door and rear or bottom air intake make it ideal for retrofitting existing open fireplaces.

Home interior

Use the discount code EXPO

Valid on non-discounted products.

qty

Rating:
(0)


Security policy



Delivery policy



Return policy

• Ducted wood-burning insert with large glass for a panoramic view of the flame

• Cast iron or vermiculite firebox, your choice

• Top Ø 15 cm flue outlet, female

• 2 ductable hot air outlets to heat the installation room

• Adjustable flame via a single side control that regulates primary and secondary air

• Reversible door: during assembly, it can be installed with right or left opening.

• Tangential fan with touch electronic control unit, which can be deactivated to heat by natural convection

• Internal filters that guarantee stable emissions during use

• Rear or bottom air intake for easier installation in older chimneys

• Includes 1 inspection of 50cm pipe and 3-sided cornice + 1

• Glass dimensions: 57.5x45 cm

• Useful power 7 kW, nominal power 7.7 kW

• Yield 90.5%

• Heatable volume 180 m³

• Consumption 1.7 kg/h

• Weight 100 kg

• Dimensions (width x depth x height): 60x44x50 cm

Optional accessories

These accessories are not included. If you need them, you can add them to your order from the related products section on this page.

• 3m extension kit insulated pipe Ø 6.5cm : 3-meter insulated pipe to carry ducted hot air to another room.

• Air Diffuser Kit with 1 turbine : Turbine that propels hot air through ducts to other rooms.

• Air Diffuser Kit with 2 turbines : Two turbines that propel hot air through ducts to other rooms.

• Electronic control unit with radio remote control : Control unit for managing ventilation or the Air Diffuser Kit with remote control. It can function as a dual control unit.

• Touch control unit kit : Touch control unit to manage ventilation or ventilated grilles.

• Firebox V and Firepocket support stand : Support for installing the insert at the correct height in a new fireplace.

• Aluminum tube Ø 14 cm 1.5 m : Tube for channeling hot air and external air intake.

• Aluminum tube Ø 14 cm 3 m : Tube for channeling hot air and external air intake.

1201070
10 Items

Data sheet

Broad
600 mm.
Consumption
1,7 kg/h
Height
500 mm.
Depth
440 mm.
Pipe diameter
150 mm.
Smoke outlet
Top or rear, Ø 15 cm
Declared power
7 Kw.
Performance
90,5%
Interior material
Vermiculite or cast iron
Forced Air
Optional: Air Diffuser kit with switch-off tangential fan
Fuel
Wood
Weight
100 Kg.
Heatable volume
180 m³
air outlets
2 ducted hot air outlets
Door
Reversible: right or left opening
Glass
57,5 x 45 cm

Specific References

No customer reviews for the moment.

Write your review

Firepocket 60 Evo wood insert Edilkamin

The Edilkamin Firepocket 60 Evo is a ducted wood-burning insert with a large 57.5 x 45 cm glass panel offering a panoramic view of the flames. With 7 kW of heat output and 90.5% efficiency, it heats up to 180 m³. You can choose between a cast iron or vermiculite firebox, and its tangential fan with touch control can be deactivated for natural convection heating. The reversible door and rear or bottom air intake make it ideal for retrofitting existing open fireplaces.
